N150 Firewall Mini PC, 32GB DDR5 RAM 1TB SSD Soft Router Computer, 4x2.5GbE i226-V LAN Network Gateway Micro Computer Appliance, Support AES-NI
Visit the HAICOTECH Store★★★★★
★★★★★
|0 ratings
527.49
In Stock
FREE delivery October 27 - November 17. Details
About this item
- CPU
- RAM & SSD
- 4 Ethernet I226-V 2.5GbE
- Port
- Compatibility
527.49 CA
FREE delivery October 27 - November 17. Details
In Stock
Available Options:
8 variationsSecure transaction
Ships from and sold by Amazon.CA
Model Number: HAICOTECH X4DF
CPU: 12th Gen N150
Cores & Threads: 4 cores, 4 threads
Cache: 6M
Max Turbo Frequency: 3.60 GHz
TDP: 6W
Chassis: Aluminum alloy
AES-NI Supported: Yes
Memory: 1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
Support 2 storage: 1x M.2 NVMe/PCIe3.0x1 2280 SSD + 1x 2.5 inch SATA3.0 7mm SSD/HDD.

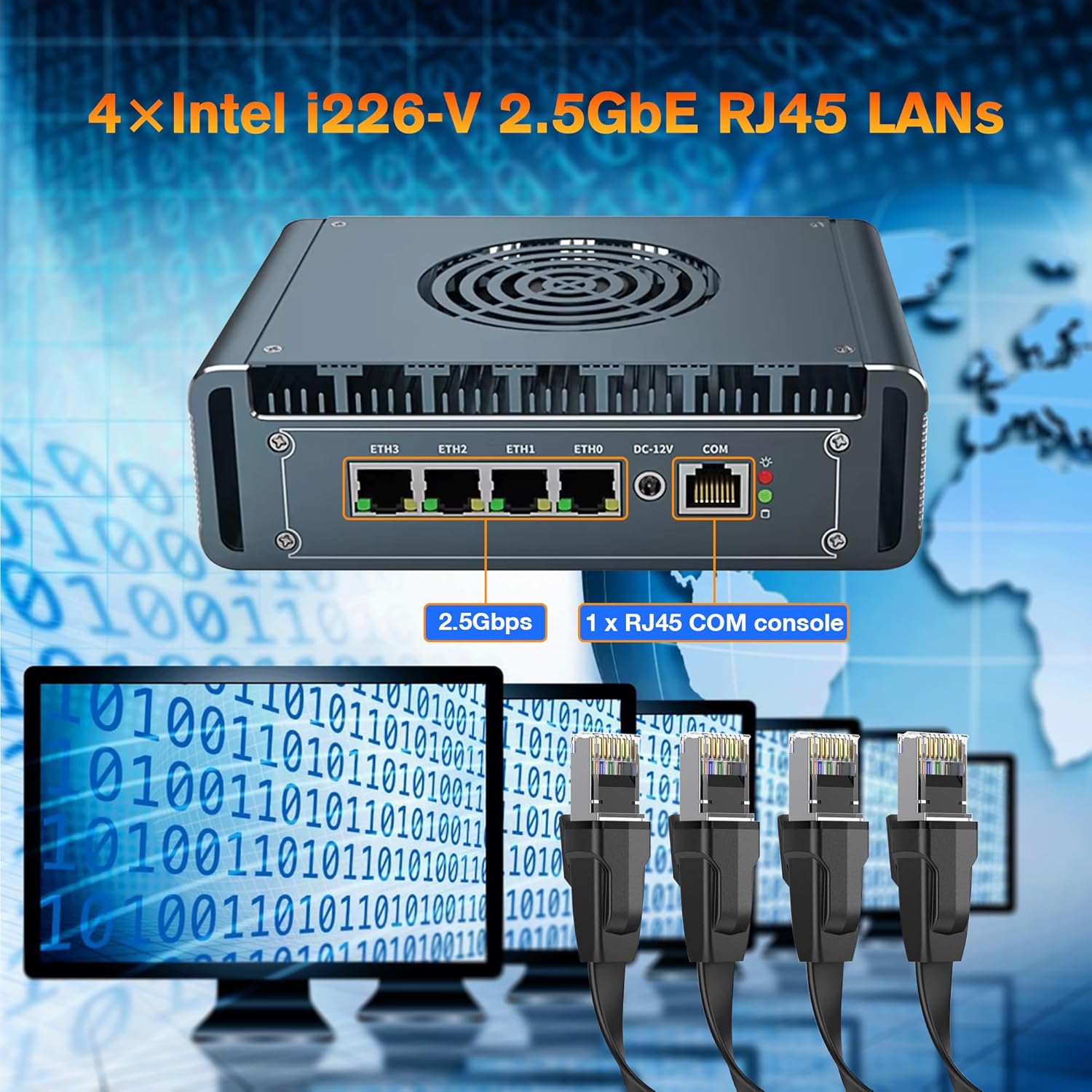

I/O Interface: 4xi226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G/3G SIM slot, 1xHDMI and 1xDP dual 4K video display.
Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
1xSIM slot, 1xMPCIE wireless slot, support Wi-Fi/4G/3G(USB signal, 3 choose 1) connection(optional to buy).
Innovation: All aluminum shell fins passive heat-sink + intelligent fan cooling, using fan and motherboard isolation technology to achieve dust and corrosion prevention. It is flexible to change between fanless system and fan system. A fan built in solid aluminum case with cooling fins gets much better heat dissipation to release CPU performance totally, sound of the fan is low. You can unplug fan pin off motherboard to make it fanless system if you want silence totally.
Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Power: DC 100-240V AC/50-60hz, Support wide voltage 12V input
Operating Temperature: 0°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% (non-condensing)
Cooling system: Fanless
Size: 17.8x12.2x5.5 cm
Weight: 1.8kg
Compatibility: firewalls for pf sense, OPNsense and other popular open-source software solutions
Package List:
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
Product Information
| Display Resolution | 3840 x 2160 |
| Max screen resolution | 3840x2160 |
| Processor | 3.4 GHz celeron |
| RAM | 32 GB SO-DIMM |
| Memory Speed | 4800 MHz |
| Hard Drive | 1 TB SSD |
| Graphics coprocessor | Integrated Graphics |
| Card description | Integrated |
| Brand | HAICOTECH |
| Series | N150 i226-V DDR5 |
| Item model number | HAICOTECH X4DF |
| Hardware Platform | Linux, Mac, PC |
| Operating System | pfsense |
| Parcel Dimensions | 18 x 14 x 6 cm; 1.8 kg |
| Processor Brand | Intel |
| Number of Processors | 4 |
| Memory Type | DDR5 SDRAM |
| Hard Disk Interface | PCIE x 2 |
| Hard drive rotational speed | 4800.00 |
| ASIN | B0F7XW99M1 |
| Date First Available | May 8 2025 |
| Manufacturer | HAICOTECH |
