Pc Motherboard Fit for Gigabyte B560M AORUS PRO AX Motherboard 128GB LGA 1200 DDR4 Micro ATX Mainboard

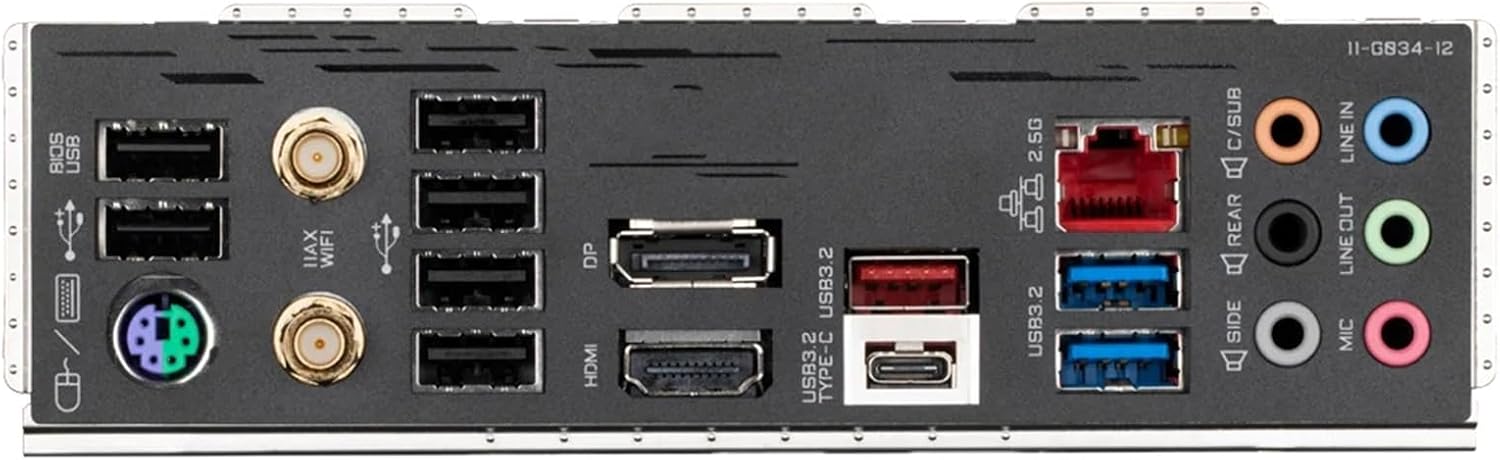

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* Chipset Intel B560 Express Chipset Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Audio Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel LAN Intel2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.1 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* *Supported by 11th Generation processors only. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) Multi-Graphics Technology Support for Quad-GPU CrossFire and 2-Way CrossFire technologies Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)* * Supported by 11th Generation processors only. Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready USB Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen2x2 support 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen1 ports on the back panel 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header 2 x USB 3.2 Gen1 ports available through the internal USB header Chipset+ 2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button BIOS：1 x 256 Mbit flash Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Operating System：Support for Windows 10 64-bit Micro ATX Form Factor; 24.4cm x 24.4cm ========== RAID Supported : Yes Processor compatibility : 10th Intel Core i3,11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,10th Intel Core i7,10th Intel Core i5,10th Intel Core i9,11th Intel Core i5 Usage Scenario : Enthusiast & Overclocking,Gaming Back I/O Ports : 1x RJ45,HDMI 1.3,Disply Port,USB 3.2 Gen2 X2 Onboard LAN : 1x RJ45 Storage Interface Type : SATA,M.2 (NVMe) Number of PCI : 1 PCI - E standards : PCI - E 4.0 Support Memory Type : DDR4 Quality Certification : ce Maximum Ram Capacity : 64 GB Chipset Manufacturer : Intel Chipset : Intel B460 Application : Desktop Socket Type : LGA1200
