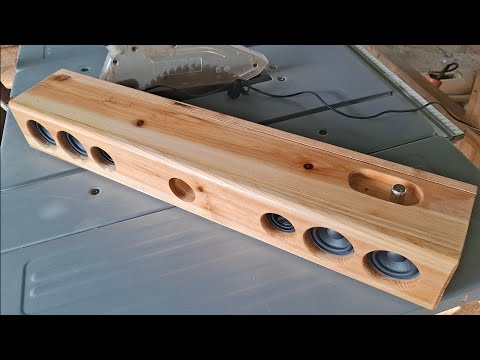

Turn Grass Wood into a DIY 100W WiFi Bluetooth Speaker Build - Arylic amp

Video Description

The Arylic Up2Stream is a DIY-friendly amplifier board for people who want to make their own DIY wireless speaker. So this is the opportunity to make another awesome build of Diy Bluetooth speaker that has a streaming capability here on SeganTech channel. I hope you inspired and enjoy the video. •Disclaimer: This amplifier board was sent to me for free by Arylic, the company that makes the amplifier board. In return, I agreed to feature it here on the SeganTech YouTube channel by creating another awesome DIY speaker build using their amplifier - and they were totally cool with that. Big thanks to Arylic for the support! ◇DISCOUNT LINK of Up2stream amp https://www.up2stream.net/discount/ST10?redirect=%2Fproducts%2Fup2stream-amp-amplifier-board ◇ Arylic Up2Stream amp V4 specifications and Features • Connectivity WiFi IEEE802.11 b/g/n 2.4G Bluetooth 5.0 SBC/AAC, 15M, BT Receiver Wired Network Ethernet Single 10/100M RJ45 Protocols AirPlay, DLNA, UPnP, Spotify Connect, Qplay •Interface Power Input 12V-24V/DC in 12V-24V 2Pin Connector •Sound Audio Format Decoding up to 192khz/24bit Output up to 44.1khz/16bit CD quality •Music Format FLAC/MP3/AAC/AAC+/ALAC/APE/WAV •NAS Support NAS with DLNA support •SNR/THD+N 91dB/0.03%, @1kHz 50W+50W 24V-4Ω •USB Host For USB pen drive/stick, 1000 songs limited. Frequency response 20Hz to 20kHz ◇ Up2StreamAmp V4 Output Power •Stereo 2x50W @ 4ohm load at 24V 2x30W @ 8ohm load at 24V 2x15W @ 8ohm load at 15V •Mono 100W @ 2ohm load at 24V 60W @ 4ohm load at 21V 30W @ 8ohm load at 18V Speaker Impedance 4-8Ω Amplifier Chip TPA3116D2 •Whole board Dimensions 110*80*22mm •Weight 300g •Working temperature 0~40℃ Acessory 220mm Internal WiFi Antenna x2 4Pin Phoenix Connector Screw Driver User Manual ◇ Indicator of amplifier ⚪White-WiFi & network mode: Flashing fast-device is booting Flashing slow- waiting for WiFi connection Solid- WiFi is connected 🔵Blue-Bluetooth mode: Flashing slow- waiting for Bluetooth connection Solid- Bluetooth is connected 🟢Green-Line in mode 🔴Red-USB mode 🟡Yellow-connect to PC 🟣Purple-Spdif in mode ◇ Control In Your Favorite way • AirPlay Play and control from your iPhone, iPad or Mac directly. Support streaming directly from iTunes. • Bluetooth Flexiable to play from any audio sources from Bluetooth, like YouTube, Netflex, Tiktok or more. • 4STREAM & GO CONTROL APP Fully control with music service, multiroom, source switch, volume control. Change WiFi, Bluetooth name. • Web Control listen to the radio and your favorite playlists easily via web browsers. • DLNA/UPnP Support 3rd party app for playing by DLNA or UPnP protocols. Like Musicbee and Foobar2000. 1/of5The rest from my beloved YouTube Audio Library by YouTube. ◇ Speaker Build specifications and Buy link of all the components that used ■ But first Pay attention 》If you’re located to United States, click the first link. 》If you’re located to Asia, Click the second Link. •Amp - Up2Stream amp V4 50WX2 stereo 100W mono (DISCOUNT LINK) https://www.up2stream.net/discount/ST10?redirect=%2Fproducts%2Fup2stream-amp-amplifier-board •Subwoofer - 3" 15WX2 4ohms https://a.co/d/aVBjwFX https://s.shopee.ph/3fvhbWzEP8 •Fullrange speaker - 2" 15W 4ohms pair https://a.co/d/bMSDTDi https://s.shopee.ph/4AryCGbNBf •Passive Radiator - 3" pair https://a.co/d/hz3B47A https://s.shopee.ph/qbWE4Gxhj •Deviding network - 60W 2 way pair https://a.co/d/5VEf9Se https://s.shopee.ph/70C9ZQbHl3 •Tweeter - 1.5" 5W 12ohms pair https://a.co/d/dqrZ3CD https://s.shopee.ph/AUm1kAgklS •Tweeter Capacitor - 2.2 uf 100V or 50V pair https://a.co/d/0MKADhR https://s.shopee.ph/4LBOOsTCWT •Battery - 3S 2P 12.6V DC ( 3.7V 18650 2000mah each X6) with BMS) https://a.co/d/hueXjl4 https://s.shopee.ph/2B6tow9q5c • boost converter - 12.6V DC to 16.9V DC https://a.co/d/iFLoMii https://s.shopee.ph/1VrD1m6ua9 • Bluetooth & Wifi antenna - 2.4Ghz https://a.co/d/bwKfo2z https://s.shopee.ph/2VjkD5y9o3 ◇Wood working Powered Tools i used 2000Watts Saw table 350Watts Bench Drill 500Watts Palm router 700W Drill 750W Angle grinder 350W Electric sander 12V Cordless Impact drill •Want to get those kind of tool i use? Tel me on comment section : ) ◇Music: Danger snow- Dan Henig https://youtu.be/VTcPicU3KlQ?si=cWx_Il06Ospxtc6E Thank you for watching Much appreciated! Stay tuned for future diy wooden bluetooth speaker, wooden soundbar & subwoofer build #Up2StreamAmp #diybluetoothspeaker #audio
