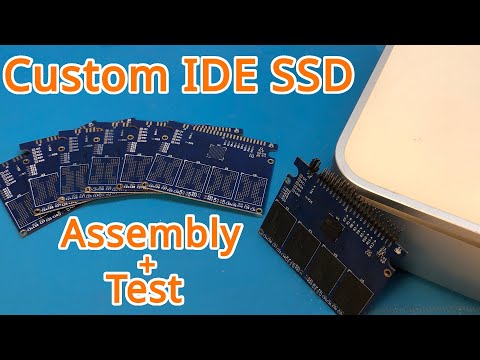

Custom 2.5-inch IDE SSD Assembly and Testing
dosdude1
@dosdude1About
Watch my channel to see everything about computers and electronics, such as repairs, mods, system overviews, and reviews.
Latest Posts
Video Description
In this video, I assemble and test a custom 2.5-inch IDE SSD that I've designed, which is compatible with any machine that normally utilizes a 2.5" IDE hard disk, or 3.5" IDE hard disk with a simple adapter. This drive's design is based heavily off my original IDE SSD design, created for the 1.8" ZIF IDE SSD I made a video about previously. Check out PCBWay here: https://www.pcbway.com/ The design can be found here: https://github.com/dosdude1/2.5-inch-ide-ssd Link to purchase will be available soon at https://doslabelectronics.com , but for now, please email me using the email address on my channel page if you are interested in buying a drive. SM2236 MPTool: https://cloudflare-ipfs.com/ipfs/QmXGDwxXXuYw2sxG7HS8EfPiAu3XjFn8weJc8s7qShbuE2/SM2236ACMP_SSD_N0109A.zip
